MASCOT

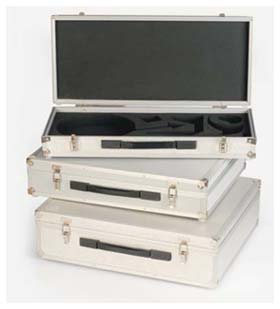

Module 201, industrial carrying case an innovative product has been designed specially for the industrial application to protect your high value products.

Module 201, robust and light weight is made from the composition of aluminium extrusion profiles. Choice of different color shades, finish and variable size cases are available in height, width and depth.

Optional impact resistance, complete packing solution is also provided to suit the specific application.

FEATURES

Soft look ergonomic design,-no sharp corners.

With complete packing solution using impact resistance polyethylene foam.

Special cut out as per the requirement for packing your high valuable product to suit the application.

Total dust protection cases.

Can be made to order on request.

APLICATION

Robust cases used for toolkits and measuring instruments.

Mounting and carrying Security and Electronic instrument.

Medical and testing instruments.

Product demonstration as well as product display cases.

Storage and transportation.

Video and optical equipments.

Difference equipments.

FEATURES

A protective ideal material for product packing Impact resistance with excellent elasticity. For protection of material against extreme temperature. Any cut can be made to suit your application. Water proof as well as heat resistance.

TECHNICAL FEATURES

Density	: 60-70kg/M3
Compression set	: 14%
Temperature Extremes	: -700 C. To 800 C
Tensile Strength	: 710KN/SQM


THREADED STRIPS		CORNER ANGLE
Can be inserted or slide into special grooves Provided in the section to fix the mounting Plates and parts.		Screw on corner angle fitted in threaded strip For fitment of mounting plate.

AVAILABLE SIZES

Length	X	Depth	X	Height in mm
500	X	300	X	150
500	X	300	X	150
600	X	300	X	200
600	X	380	X	195
600	X	485	X	175
685	X	300	X	150
760	X	500	X	175

SURFACE FINISH

Stocko finish

Powder coated finish

Pvc finish

Frames are normally anodized finish

PVC Finish	Stucko Finish	Powder Coated Finish
