In powerful electronics world high investments and costs are involved, keeping the view in concept, the ergonomic design of Module M – 101 can be adapted for specific application.

M-101 is designed specially for electronic and electrical industry as a packaging solution for bench top equipments and and instruments.
Thanks to its modular construction and functional design, M-101 provides optimum utilization and accommodation for valuable electronic equipment.
M-101,a robust design, made from the composition of aluminium sheets. A versatile design can be equipped as a instrument case or a rack mounting enclosure. Corner caps adds the strength in the aesthetics of the case and provides a soft look.

Choice of different color shades and variable size cases are available in height, width and depth. User friendly case, manufactured by using high precision tools and dies makes the case so ease, that one can assemble in a minutes time.

Desingn features

Robust design with all Extruded aluminium composition.

Equipped as an instrument case or rack-mounted enclosure.

Variable size available in height, width and depth.

Front and rear panel insertion from front and rear with side screw-on. No Screw on front panel

Supplied with Rear panels on all Modules.

Cover plates with different color shades, removable from out side,vented or unvented.

Soft look design-no sharp corners.

Interchangeability of all pars.

AVAILABLE SIZES

‘U’ (Height) : 1U, 2U, 3U, 4U, 5U, 6U, & 7U

‘T’ (Width) : 21T,42T,63T,84T,

‘D’ (depth) : 190mm,25mm,310mm & 405mm

U (HE) : Unit of height 1U = 44.45 mm

T (HP) : Unit of width 1U = 5.08 mm

MATERIAL

Frame composition made of Aluminium Exrusions. Panels Font/ rear, Top/ bottom made from aluminium sheets.

FINISH

Choice of powder coating or anodizing for extruded frames. Front/ rear panel anodized finish. Top / bottom cover are normally powder coated.

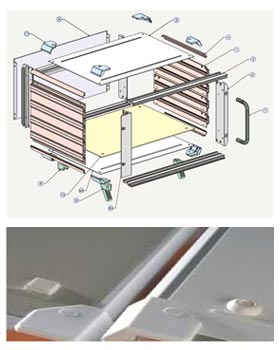

1) Depth Profile

2) Vertical Section ( Bench Top Module )

2 A) Vertical Section (Rack Mounting Enclosure )

3) Front Profile

4) Side Angle Section

5) Top cover

6) Rear Panel

7) Front Handle

8) Feet

9) Rubber Pads

10) Base Pads

11) Corner Cap

Front Section (Bench Top Modules)

To be used as an Instrument Case for bench top Modules.
Material: Aluminium extrude.
Finish: Powder Coated / Natural Anodized

Front Section (Rack Mounting)
To be used as an rack mounted enclosure for Module M.
Material: Aluminium extruded.
Finish: Powder Coated / Natural Anodized

Covers Top/ Bottom
Used as a cover for top and bottom of enclosure Case.
Both top and bottom can be supplied with/without venting holes.
Material: 1,6mm Aluminium
Finish : Powder Coated.

Corner Caps
Increases to aesthetic of the enclosure, add strength to the case and secures the enclosure.
Finish : Broken white / black

Rear Panel
As a cover for Enclosure from Rear.
Side Mounting Screw on with both side bends for fixing the Panels from side.
Material : 2.5mm Aluminium
Finish : Natural Anodized.

Spacers ( Bump on )
Rubber spacers, standard on all models gives firm support for enclosure on bottom surface, guaranty safe included in delivery need not to order separately
Material : Rubber.
Finish : Broken white/ black

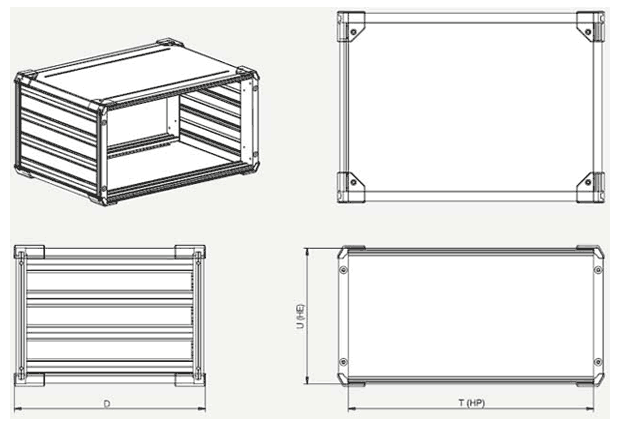

HEOGHT

U( HE )	Overall (without Corners )	Overall ( with Comers )	Usable Height
1 U	43.6	50.4	24.0
2 U	88.1	94.9	66.5
3 U	132.5	139.3	112.9
4 U	177.0	183.8	157.4
5 U	221.4	228.2	201.8
6 U	265.9	272.7	246.3
7U	310.3	317.1	290.7

WIDTH

T ( HP )	Overall (without Corners )	Overall ( with Comers )	Usable Width
21 T	131.9	134.8	106.7
42 T	238.6	241.5	213.4
63 T	345.2	348.1	320.0
84 T	451.9	454.8	426.7

DEPTH

D	Overall (without Corners )	Overall ( with Comers )	Usable Width
1	185	190	179.6
2	245	250	239.6
3	305	310	299.6
4	365	370	359.6
5	400	405	419.6

All dimensions are in mm

FRONT HANDLE
A set two can be used on both Front Section
As well Rack Mount section bended at the two ends

Material : Aluminium extruded.
Finish : Powder Coated / Natural Anodized.

BASE PLATE / CHASSIS
Can be used as chassis for various component mounting

Material : 2 mm M.S./ Aluminium.
Finish : Powder Coated.

FEET
Feet with tilt back with foldout support stand. This set consists of two tilt back and two fixed feet, enables you to stand the enclosure either parallel or at an angle for easier access to operate from front.

Material : ABC Plastic
Finish : Broken white / Black

FRONT PANEL
As a cover for Enclosure from Front.
Side Mounting Screw on with both side bends for fixing the Panels from side.

Material : 2.5mm Aluminium
Finish : Natural Anodized.

THREADED STRIPS
Can be inserted or slide into special grooves
provided in the depth frpfile to fix the mounting
plates and parts.

Material : 2mm M.S.
Finish : Yellows zinc.

COLOR CODES


RAL 7035 ( Light Gray Structure )	RAL 7032 ( Siemens Gray Structure )	RAL 9005 ( Jet Black Structure )	Special Requirement

TYPE
IC - Instrument Case (Bench Top Module)
RM - Rack Mount Enclosure

COLOR CODES
1 - RAL 7035
2 - RAL 7032
3 - RAL 9005
4 - Special Requirement

VENTING OPTIONS FOR COVERS
01 - Without Vent Holes
02 - Vent holes on Top cover only
03 - Vent holes on Bottom cover only
04 - Vent holes on Top & Bottom cover

FINISH
P - Powder Coated
A - Anodised Finish

HOW TO ORDER

Fill Respective value in place "X”


Order	101	XX	X	XX	X	X	X	XX
Description	Module	Type	U	T	D	Finish	Color	venting Options
Options	M101	IC	1	21	1	P	1	01
		RM	2	42	2	A	2	02
			3	63	3		3	03
			4	84	4		4	04
			5		5
			6
			7

EXAMPLE

	M101	XX	X	XX	X	X	X	XX
	101	IC	3	84	3	P	3	02

For Instrument Case (Module 101) of 3U (Height), 84T(Width) and 310D (Depth) with Powder coated Finish, Having Black colored Structure and venting holes on Top Cover only will have.

ORDER CODE – M101 – IC – 3843 – P302

ACCESSORIES

	Part No	Description	Size & Options	Order Code
					U	T
1	M102	Front Panel	Size U/T	M102	X	XX
					T	D	MS/AL	1/2/3/4
2	M103	Base Plate	Size T/ D	M103	XX	X	XX	X
			Material – MS or Al
			Color Code - 1/2/3/4
					U	P/A
3	M104	Pull Out Handle	Size – U	M104	X	XX
			Finish – P/A
					W/B
4	M105	Feet	Finish-Brocken white (W) / Black(B)	M105	X
					D
5	M106	Threaded strips	Size-D	M106	X

DELIVERY INLUDES This is what you get, what you see

4 Front / Rear ( Width ) Sections	2 Side (Depth) Profile
4 Vertical (Height) Sections	2 Top / Bottom Cover Plate
1 Rear Panel (Side screw on)	1 Hardware (Fasteners) Set
4 Spacers (Bump on)	4 Side Angle
